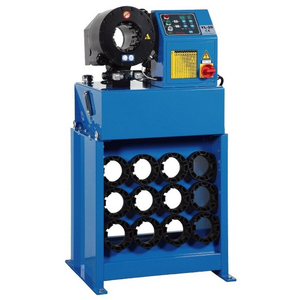

MÁY BẤM ỐNG THỦY LỰC YEONG LONG, YL-20S

MÁY BẤM ỐNG THỦY LỰC YEONG LONG, YL-20S

(1 đánh giá)

YL 20S

YEONG LONG -TAIWAN

12 THÁNG

Hydraulic Crimping Machine for Worshop Crimper YL-20S Our YL-20S is for 11/4’’ workshop crimper which the crimping force attain to 1700kN, we will be attach the 9 set standard dies set from 10, 13, 16, 19, 22, 26, 30, 39, 45mm.

Hydraulic Crimping Machines

Workshop Crimper YL-20S



一般生產扣壓機

YL-20YL-20S和YL-32 適用於車間或一般五金店面使用。扣壓範圍從4mm至2’’。

Our YL-20S is for 11/4’’ workshop crimper which the crimping force attain to 1700kN, we will be attach the 9 set standard dies set from 14, 16, 19, 22, 26, 30, 34, 39, 45mm.

The user can be easily installed the standard dies set and subtly adjusted the dimension for their need on control panel.

Also easily use the quick change tool to changing the required dies set from die rack.

*For our YL-20/ YL-20S and YL-32 workshop crimpers can be installed in maximum 78mm dies set.



TECHNICAL DATA

最大扣壓管徑 Max Hose Size 1 1/4"
扣壓範圍 ( mm ) Crimping Range ( mm ) ψ4…ψ87
模具型號   Die Type 32
模具擴張度 Max.Opening ( mm ) +26
主要模具長度 Master Die ( Die / Length ) 80
馬達 ( kW ) Motor ( kW ) 3.6
電壓 ( V ) Voltage ( V ) 220 / 440
泵浦 ( l / min ) Pump ( l / min ) 11.5
扣壓力 ( kN ) Crimping Force ( kN ) 1700
扣壓量 ( 每小時 ) Crimping Hour 1800
噪音值 ( dB(A) ) Noise level ( dB(A) ) 71
保護等級 Protection Class IP54
尺寸:長 ( mm ) Size : Length ( mm ) 680
   寬 ( mm )    Width ( mm ) 600
   高 ( mm )    Height ( mm ) 1350
   重量 ( kg )    Weight ( kg ) 230

STANDARD DIES SET SPEC

Code 32 32 32 32 32 32 32 32
Dimension 14 16 19 22 26 30 34 39
Crimping Range 14-16 16-19 19-22 22-26 26-30 30-34 34-39 39-45
Length 55 55 55 70 70 70 75 75

Code 32
Dimension 45
Crimping Range      45-51
Length 90

ACCESSORY

  •                           Quick Change快速換模
  •
  •   Manual Change手動換模
  •
  •
  •
  •                       Back Stop Device     定尺裝置
  •
  •
